Customized aluminum nitride ceramic tubes

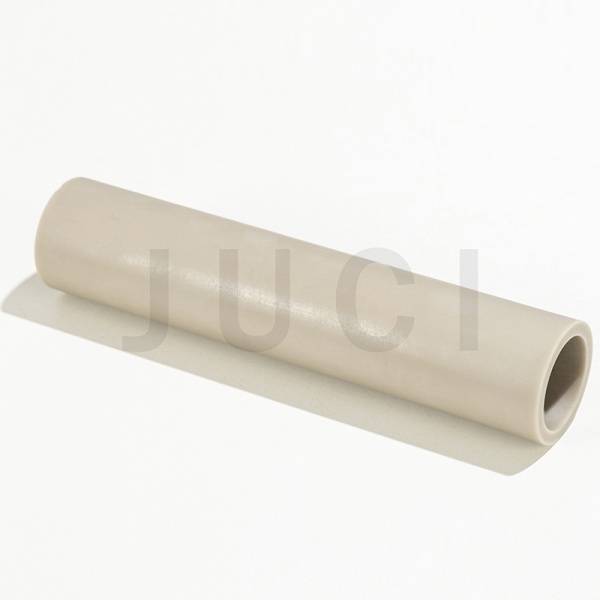

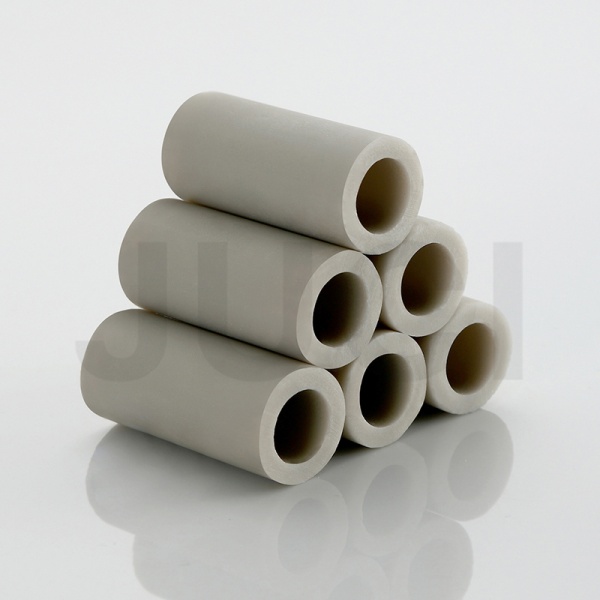

High-temperature resistant aluminum nitride ceramic tube

Aluminum Nitride Ceramic Tube: High-Performance Solution for Multiple Industries

Looking for top-quality aluminum nitride ceramic tubes? Our products stand out in the market with exceptional properties, making them ideal for diverse industrial applications.

Key Advantages

Superior Thermal Conductivity: With a thermal conductivity of 170-210 W/(m·K), these tubes excel in heat dissipation, perfect for high-power electronic devices.

Excellent Electrical Insulation: Boasting a volume resistivity of >10¹⁴ Ω·cm at room temperature, they ensure safe operation in high-voltage environments.

High Strength & Corrosion Resistance: Bending resistance 300-400 MPa and resistance to high temperatures (over 1000℃) and chemicals, suitable for harsh working conditions.

Item No :
Aluminum Nitride (ALN) Tube
Size :
Customization
Product Origin :
CHINA
Color :
Gray-white

Inquiry now

product introduction

Wide Applications

Our aluminum nitride ceramic tubes are widely used in:

Electronics & Semiconductors: For heat dissipation in power devices and insulation in high-frequency components.

New Energy: As reaction tubes in lithium battery material sintering and hydrogen transport pipes in fuel cells.

Aerospace: Protecting cables and serving as insulation sleeves in extreme temperature environments.

Why Choose Our Aluminum Nitride Ceramic Tubes?

We offer reliable quality, precise customization (sizes, shapes), and prompt delivery.

Data Sheet

Properties	Condition	Units	AN-180
Density	--	g/cm3	3.32
Thermal conductivity	25℃	W/m·K	180
Bending strength	3-point method,25℃	MPa	410
Insulation	25℃	KV/mm	31
Volume resistity	25℃	Ω·cm	3.4×10¹⁴
Dielectric constant	1MHz	— —	8.8
Dielectric loss	1MHz	— —	6.5×10^-4
CTE	25~400℃	×10-6/K	4.6

Our advantage

Xiamen Juci Technology covers 30,000 square meters, with 30 single sintering furnaces and 8 advanced continuous sintering furnaces in its production workshop, boasting an annual aluminum nitride powder production capacity of 1,000 tons. Its 800-square-meter testing center is equipped with over 100 professional testing devices for powder and ceramics, including scanning electron microscopes, particle size meters, nitrogen-oxygen analyzers, etc. The company also has a 1,200-square-meter R&D center with more than 40 R&D-specific equipments and a 30-strong R&D team, which continuously optimizes and innovates products to maintain its competitive edge in the fierce market.

Media Contact:
Xiamen Juci Technology Co., Ltd.

Phone: +86 592 7080230
Email: miki_huang@chinajuci.com
Website: www.jucialnglobal.com

Test Center
R&D Center

ISO Cetrificate
