Beyond Substrates: AlN as a Functional Semiconductor Component

In advanced fabs, AlN ceramic is no longer just a substrate material — it is increasingly a thermal-functional part inside process tools.

An aluminum nitride heater for semiconductor manufacturing delivers tight wafer-level temperature uniformity: high thermal conductivity (170–230 W/(m·K)) spreads heat rapidly across the plate, while embedded resistive layers provide precise, zone-controlled heating — a combination conventional ceramic heaters cannot match at high power density. An AlN ceramic electrostatic chuck (ESC) clamps the wafer electrostatically while dissipating process heat during high-power etch and CVD, where AlN's thermal conductivity — roughly 5–10× that of alumina — directly suppresses the thermal gradients that drive yield loss. Meanwhile, a custom aluminum nitride crucible serves as an inert, high-temperature vessel in crystal growth, resisting melt contamination where conventional ceramics would fail.

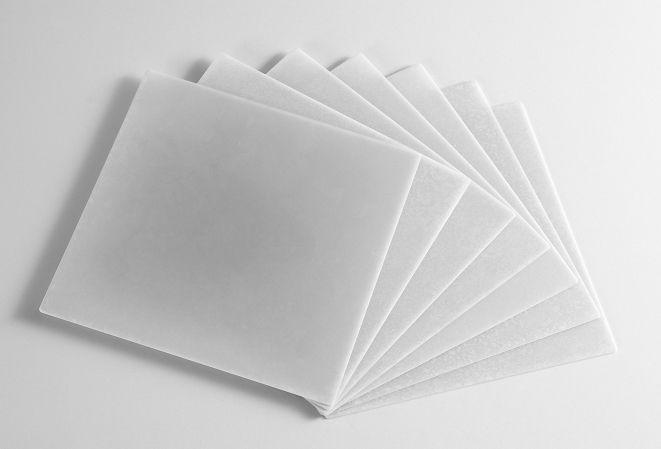

The same material logic extends downstream: aluminum nitride ceramic substrate enables IGBT/SiC power modules and laser submounts; aluminum nitride ceramic packages support hermetic housings for RF and power devices; and aluminum nitride advanced packaging materials are quietly entering 1.6T optical engines and high-density TEC stacks.

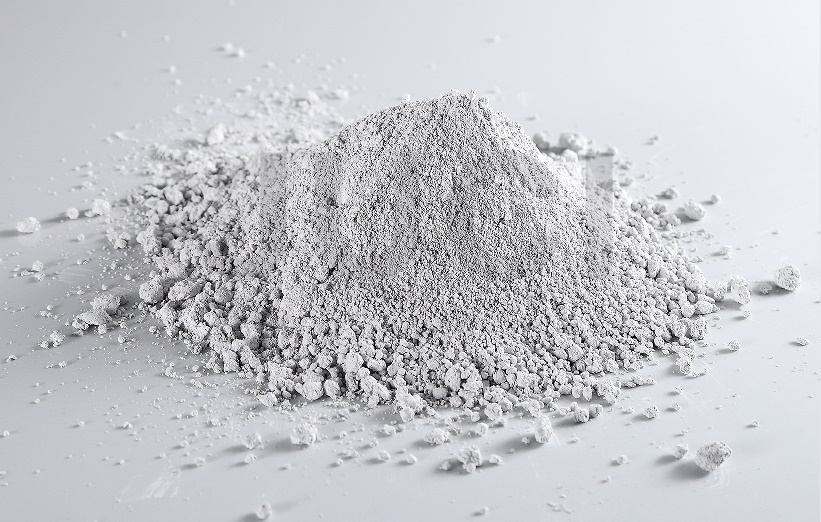

All of these parts converge on one upstream constraint: powder quality. Elevated oxygen in AlN occupies nitrogen sites and forces the formation of aluminum vacancies, which act as phonon-scattering centers and erode thermal conductivity. A qualified high purity aluminum nitride powder must therefore combine low oxygen, narrow particle-size distribution, and reproducible lot-to-lot consistency.

Currently, although semiconductor-grade powder remains concentrated in the hands of a few overseas aluminum nitride powder suppliers, products developed by domestic powder manufacturers are now comparable in performance to their foreign counterparts. Take Xiamen Juci as an example: the company has established the production capability for semiconductor-grade aluminum nitride powder, with stable product quality and key specifications reaching internationally advanced levels, enabling it to provide downstream customers with a reliable domestic alternative (import substitution) solution.

Xiamen Juci manufactures High Purity AlN Powder ,  AlN Granule,  Thermal Conductive Filler and AlN Ceramics . Please contact us if you have any requirements.
